L56-B6 Wheel Loader

Overall Weight

17,500 Kg


Engine Model

Cummins 6CTA8.3C215


Engine Power

160kW(215hp) @ 2200rpm

Overview of the Shantui L56 Wheel Loader

The Shantui L56 Wheel Loader is a versatile and powerful machine, purpose-built for the toughest Australian conditions. Powered by a reliable 215 hp Cummins 6CTA8.3-C215 engine, this loader features a 3,450 mm dumping height and a four-speed power shift transmission, designed to deliver exceptional torque and strength. With a 17.5-ton operating weight and a 5-ton lift capacity, the L56 is your go-to choice for handling demanding applications in construction, mining, and earthmoving.


Whether you are pushing, digging, or loading, the Shantui L56 provides robust performance and reliability. Its ergonomic cab is crafted for operator comfort, featuring Australian standard air conditioning and a wrap-around windscreen for better visibility.

A bulldozer, yellow, grading soil on a construction site

Key Features

  • Powerful Cummins Engine: 215 hp 8.3L Cummins engine that delivers ample power for various applications.
  • High Lifting Capacity: 5-ton lift capacity and an operating weight of 17,500 kg make it capable of handling heavy-duty work.
  • Bucket Breakout Force: 170 kN bucket breakout force allows efficient digging and handling of tough materials.
  • Maximum Dump Height: A class-leading 3,450 mm maximum dumping height, perfect for loading trucks, crushers, or spreaders.
  • Flexible Transmission: Equipped with a D135 Power Shift transmission, featuring four forward gears and three reverse gears, providing versatile speed options for different work needs.
  • Bucket Specifications: 3 m³ bucket capacity with a 45° maximum dump angle for smooth unloading.
  • Speed and Mobility: Achieves a maximum travel speed of 39 km/h to move quickly between job sites.
  • Auto Lubrication System: A standard centralised auto lubrication system for better component longevity and reduced maintenance hassle.
  • Advanced Cab Comfort: Ergonomically designed cab with adjustable seating, noise-reducing mats, and LED lighting to ensure the operator stays comfortable during long shifts.

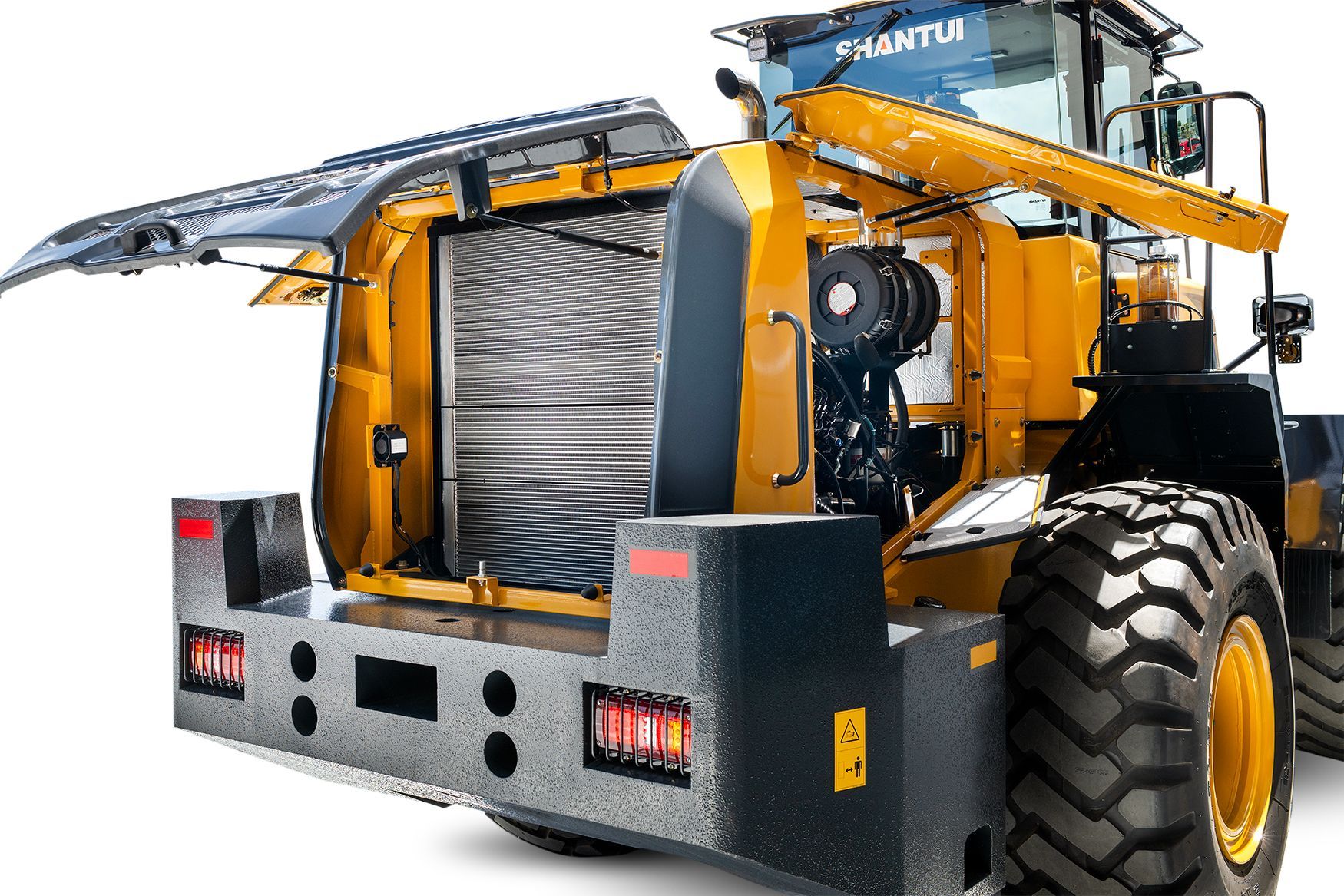

  • Ease of Maintenance: The loader includes a wide-opening engine hood, convenient access doors, and site glasses on lubricant reservoirs for easy maintenance checks.
Yellow bulldozer pushing a pile of dirt and rocks on a sunny day — Shantui QLD in Kingsthorpe, QLD

Technical Specifications

  • Engine: Cummins 6CTA8.3-C215 // Rated Power: 215 hp (160 kW) @ 2,200 rpm // Displacement: 8.3 L
  • Transmission: Electric power shift control with a single-stage torque converter // Gears: 4 forward, 3 reverse // Maximum Travel Speed: 39 km/h forward, 22 km/h reverse
  • Hydraulic System: Gear type main pump, 18 Mpa relief pressure // Steering System Pressure: 16 Mpa
  • Fuel and Capacity: Fuel Tank: 300 L // Hydraulic Oil Tank: 170 L // Transmission Oil: 45 L // Coolant: 55 L
  • Dimensions: Length: 8,220 mm // Width: 3,066 mm // Height: 3,450 mm // Wheelbase: 3,250 mm // Ground Clearance: 440 mm
  • Tipping Load at Full Turn: 10,000 kg

Why Choose the Shantui L56 Wheel Loader?

Shantui’s L56 Wheel Loader offers exceptional value for money, combining powerful performance with robust features designed for Australian conditions. Its flexibility is further enhanced with multiple available attachments, allowing it to convert into a grader, forklift, crane, or even a bulldozer in under a minute using the fully cab-controlled quick hitch system.


The L56 is best suited for mid-sized projects where versatility and ease of handling are crucial. Compared to larger models like the L68 or L76, which are built for more heavy-duty applications, the L56 provides an excellent balance of power, manoeuvrability, and comfort. Its ergonomic cab and centralised lubrication make it perfect for operators needing reliable performance and reduced downtime without the need for the highest lift capacities.


With a dependable Cummins engine, a spacious ergonomic cab, and features like a centralised auto-lube system and easily accessible maintenance points, the L56 Wheel Loader maximises uptime and efficiency while minimising service-related downtime.
